Z52672 Reaper knife segment, large notch, John Deere (SAM)
Availability: In stock
Z52672 – John Deere Coarse-Tooth Sickle Section
The Z52672, also known by OEM numbers AZ40032, Z93077, Z47493, 06503530 and others, is a genuine coarse-tooth sickle section for John Deere grain and draper headers.
Specifications:

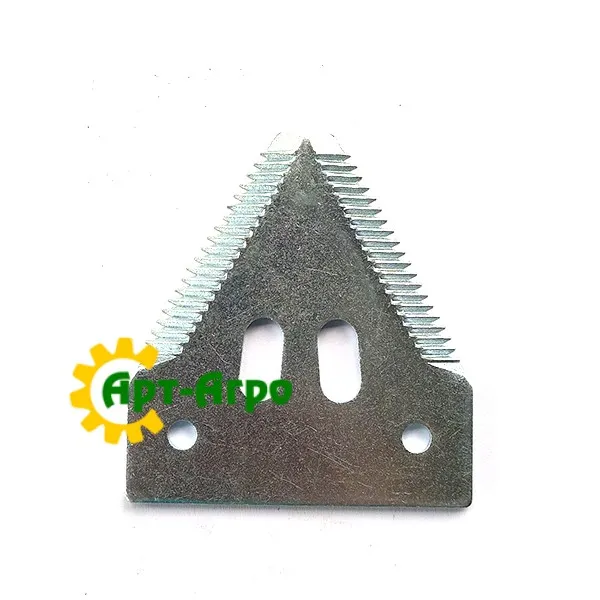

Shape: truncated triangle with two mounting holes
Material: alloy hardened steel, with serrated (toothed) cutting edge
Dimensions (approximately):
- Length - 81 mm
- Width - 75 mm
- Thickness - 3 mm
- Distance between holes - 51 mm
- Diameter of holes - 6 mm
- Weight: about 0.076 kg
Compatibility:
Suitable for cutting units of John Deere headers and platforms of the following models:
Series 600-635 (600R/F, 614R, 615R, 618R, 620R, 622R, 625R, 630R, 635R)
Models 810-825, 918-925 (European versions)
Platforms 930, 935, 940, 945, 1032, 1042, 1052 and others
Advantages:
Sharp serrated edge provides a smooth and clean cut, reduces crop losses
Hardened steel increases service life and wear resistance
Easy installation - fastening with two bolts or rivets
Summary:
Z52672 is a reliable header segment, a knife section, with a large tooth for John Deere equipment. It provides a high-quality cut even in difficult conditions, is easy to replace and is suitable for mass repairs.
| Properties | |
| Description | The segment of the reaper knife is a trapezoidal steel plate with sharp serrated cutting edges. It is made of alloyed hardened steel, which provides high wear resistance and resistance to breakage during intensive work. The segment has mounting holes at the base and is installed on the knife blade using rivets or a threaded connection. It ensures a clean cut of plant mass, stable operation of the cutting device and reduced losses during harvesting. Thanks to the precise geometry and standard mounting holes, a tight fixation on the knife and stable operation of the cutting device without vibrations are ensured. |
