H156938 JOHN DEERE Return Elevator Upper Shaft

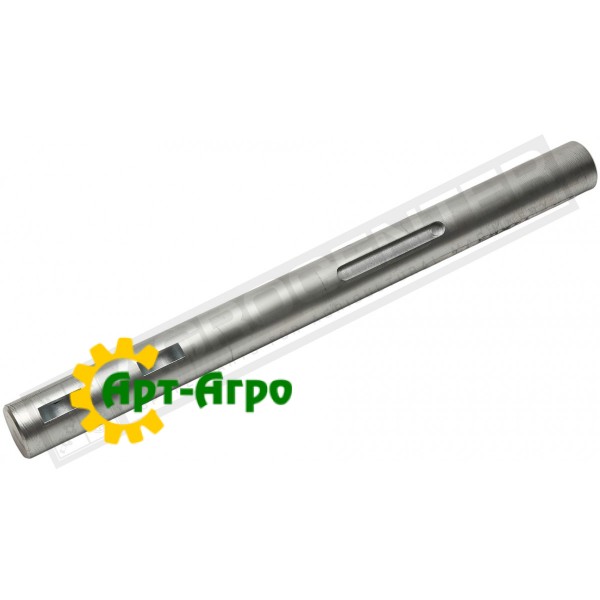

Tailings Elevator Shaft H156938 for John Deere

The H156938 spare part is a tailings elevator top shaft for grain transport mechanisms of John Deere combines. It is installed in the elevator drive and transmits torque to the sprockets and chains of the conveyor, which ensures the supply of grain and crop to storage or to subsequent equipment components. The part is made of durable steel with precise splines and places for installing bearings and sprockets, which guarantees durability even in difficult field conditions.

Specifications

• Part number: H156938
• Name: Tailings Elevator Shaft
• Type: Grain Conveyor Drive Shaft
• Application: Torque Transmission in Grain Elevator
• Material: High-quality hardened steel
• Compatibility: John Deere Combines 9000 STS, S500/S600/S700 Series (e.g. 9560STS, 9650STS, S660, S670, S780, etc.)
• Shape: Cylindrical shaft with splines and mounting locations
• Condition: New OEM part or quality equivalent
• Length: Approximately 355 mm (14") according to the original standard

Application

The H156938 shaft is installed in the grain elevator of John Deere combines and provides:

reliable transmission of rotation from the elevator drive to the transport chain;

smooth operation grain conveyor without vibrations and distortions;

stable operation of the elevator under heavy loads in field conditions;

long-term operation of the unit due to the high wear resistance of the material.

This part is critical for the operation of the combine elevator unit - it affects the continuous supply of grain and the efficiency of harvesting processes.
