H153329 Double Header Knife Segment (Fine Serration) John Deere (SAM)
Availability: In stock

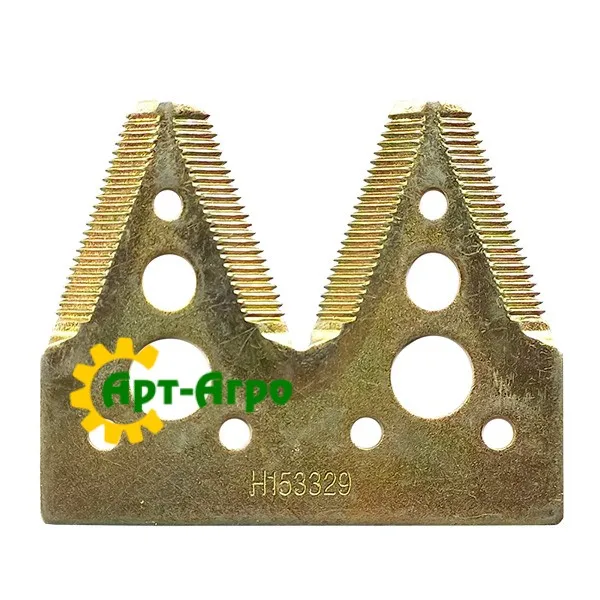

H153329 – Fine-tooth sickle section
The H153329 is a fine-tooth sickle section for John Deere headers for standard and draper platforms. It provides a precise cut in small grain crops due to the dense serrated edge (14 teeth per inch), reducing losses and improving the quality of the cut.
Key Features
Type: Fine-toothed header segment, 14 tpi
Dimensions: Approximately 102mm x 83mm (4″ x 3¼″)
Mounting: 4 holes, 25mm (1″) apart
Weight: ~0.12kg (≈0.26lb)
Compatibility
Fits John Deere headers and drapers models:
200 Series Platforms: 213/215/216/218/220/222/224/230
600–635 Series (F, R, FD) Platforms: 615–635, including FD versions
625D–645FD Drapers and 725D–745FD Platforms
Advantages
Dense 14-tooth edge - excellent cutting quality when harvesting grain crops
Coating prevents rust and increases service life
Clear universal landing geometry - simple and reliable installation
Summary
H153329 is a reliable fine-tooth segment of the John Deere header, providing an even cut when harvesting small-grain crops on platforms and drapers. It is recommended to change when the teeth are worn out
| Properties | |
| Description | The segment of the reaper knife is a trapezoidal steel plate with sharp serrated cutting edges. It is made of alloyed hardened steel, which provides high wear resistance and resistance to breakage during intensive work. The segment has mounting holes at the base and is installed on the knife blade using rivets or a threaded connection. It ensures a clean cut of plant mass, stable operation of the cutting device and reduced losses during harvesting. Thanks to the precise geometry and standard mounting holes, a tight fixation on the knife and stable operation of the cutting device without vibrations are ensured. |
| Parameters | |
| Weight, W | |
| Width, B1 | |
