H128576 Sprocket John Deere(Agri Parts)
Sprocket H128576 for conveyor John Deere -z8 (8 teeth).
It is used on the upper grain elevator of the JOHN DEERE combine.
Star H128576 drives the grain elevator for reloading grain into the hopper.
Similar sprockets of the chain transmission are a mandatory element of the chain transmission of the torque between two parallel shafts, with the help of a flexible element - a chain.
Single row
This spare part is made of steel. It is connected to the shaft with the help of a groove under the key, which is located in the central hole. Fits on a shaft with a diameter of 30 mm.
The part is thermally treated to increase strength and wear resistance. The outer surface is covered with paint.
Buy star H128576 is necessary to replace worn or damaged conveyor parts of John Deere combine harvester brands: 2054, 2056, 2058, 2254, 2256, 2258, 2264, 2266, 9500, 9560, 9570, 9600, 950, 9670, 97500, 9700 , 98600.

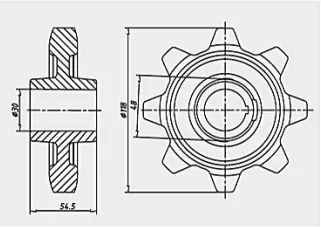

Scheme of the star:
| Properties | |
| OEM | h128576, h177988 |
| Size | Inner diameter, d - 30 mm, Outer diameter, D - 122 mm, Height, H - 54 mm |
| Weight | 1.4 kg |
| Additional | Number of teeth, Z - 8, Keyway 54x7x4 mm |
