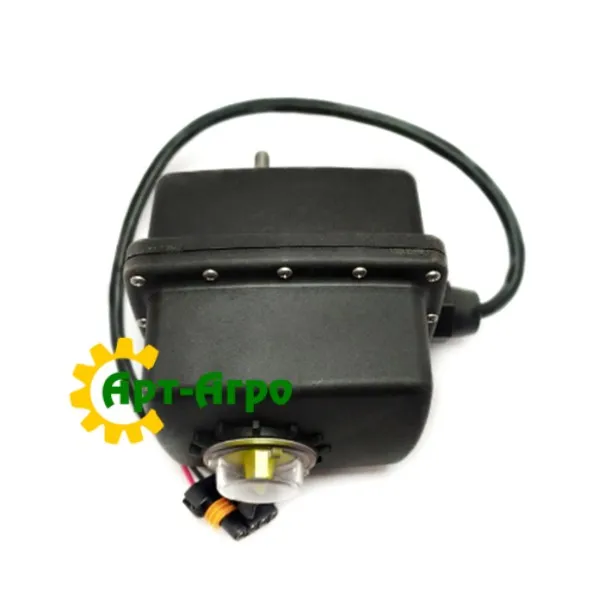

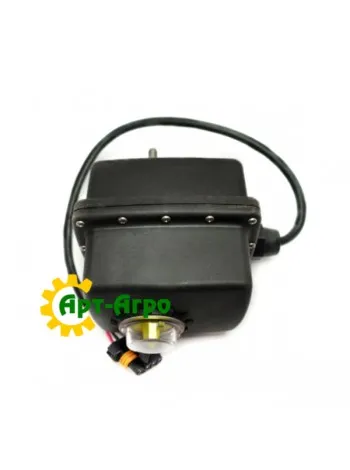

AN302514 John Deere Valve Actuator

AN302514 – John Deere Actuator

Description

AN302514 is an electric actuator used in the boom valve control system of John Deere sprayers. The part is responsible for opening and closing the sections of the working fluid supply during sprayer operation.

The actuator operates on an electrical signal from the machine control system and quickly switches the fluid distribution valve, which allows for precise control of the application of preparations. In some catalogs it is also referred to as the boom valve actuator.

Main characteristics

• part type: electric valve actuator

• equipment manufacturer: John Deere

• component: sprayer control system / boom valve

• power supply: 12 V

Dimensions

• length — ≈165 mm (6.5")

• width — ≈127 mm (5")

• height — ≈107 mm (4.2")

• weight — ≈0.87 kg (1.91 lb)

Application

John Deere self-propelled sprayers:

• 4630

• 4730

• 4830

• R4023

• other models with boom section control system.
