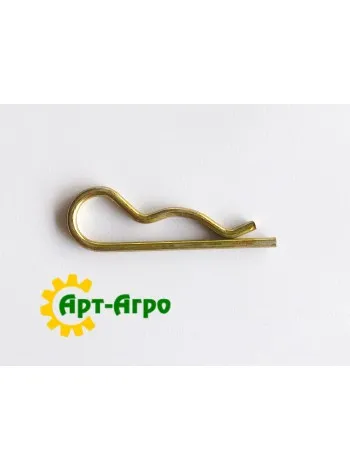

28316 Cotter pin JOHN DEERE (Royal Tiger)

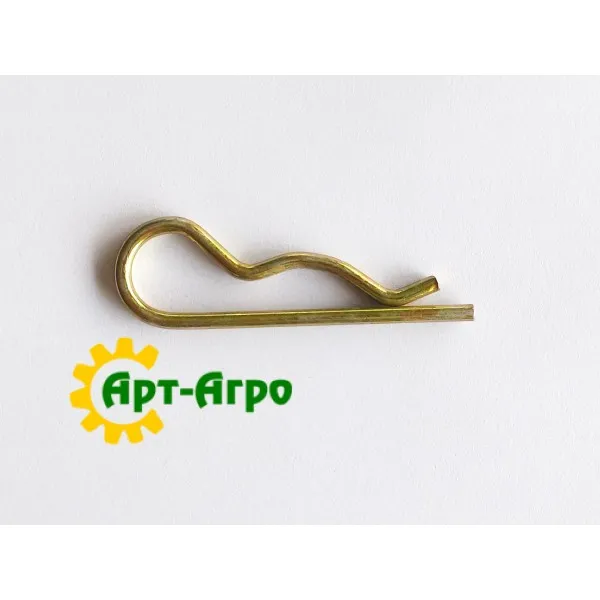

JohnDeere 28316 - Spring Locking Pin

The 28316 is a spring locking pin, also known as a cotter pin, designed to secure components on JohnDeere headers and other equipment under auger pins or axles.

Main characteristics

Wire diameter: 3.76 mm (0.148")

Length: 76 mm (~2.99")

Internal clearance: ~15 mm (~0.591")

Material: steel wire with spring memory, resistant to deformation and corrosion

Weight: about 0.03 lb (~13–14 g)

Purpose and advantages

Reliably fixes bolts, cotter pins and auger fingers, preventing spontaneous unscrewing or falling out

Easy installation - inserted into the hole of the part and held by spring force

Versatility: fits 600/900 series headers (e.g. 614R, 620F, 625R, 630F, 635FD) and other combine models

Recommended use

Use at each header assembly to prevent loosening of elements

Can be purchased individually or in packs, convenient to have a reserve for seasonal maintenance

If there are signs of corrosion or spring fatigue, replace

Summary

28316 JohnDeere is a spring locking pin, 76 mm long and 3.76 mm in diameter. It provides reliable fixation of important components of the headers, prevents their spontaneous loosening and is easy to replace.

The ideal choice for maintenance of header equipment.
