AH121047-WN Звездочка Z-18 привода колосового элеватора, нижняя John Deere
Availability: Out of stock
AH121047-WN Elevator drive sprocket for John Deere combine (analogue).
Z 18 (18 teeth).
AH121047-WN (analogue) sprocket is one of the mandatory elements of the combine, designed for chain transmission of the elevator drive torque.
Used as a spare part for JOHN DEERE combines: CTS, CTS II, 9400, 9410, 9450, 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9660CTS, and 9660CTS other.

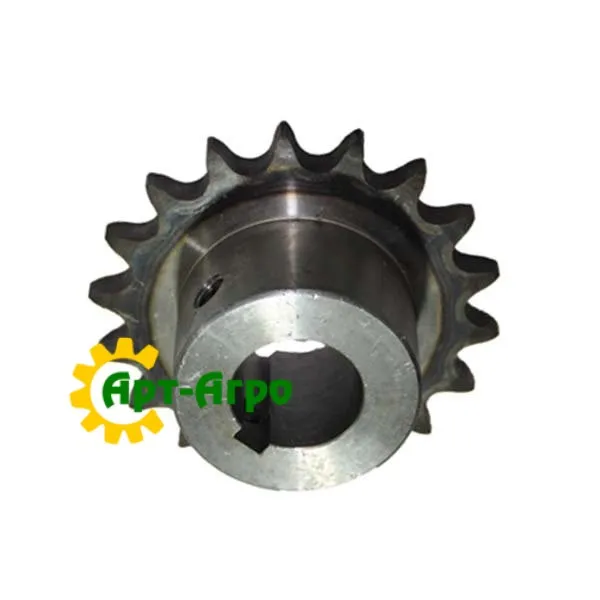

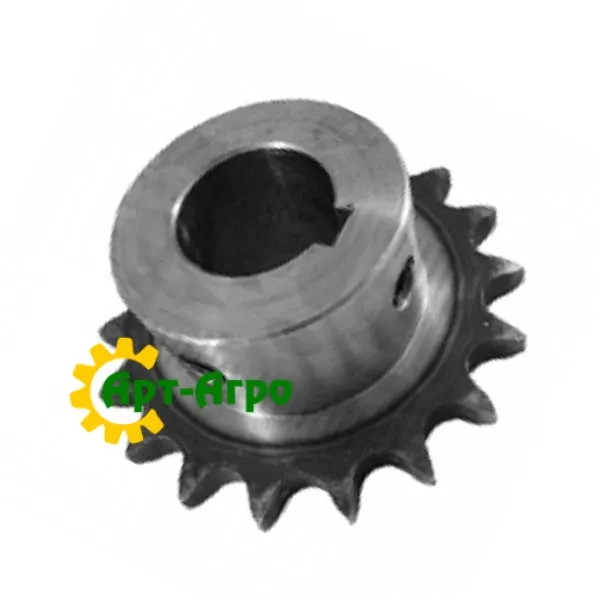

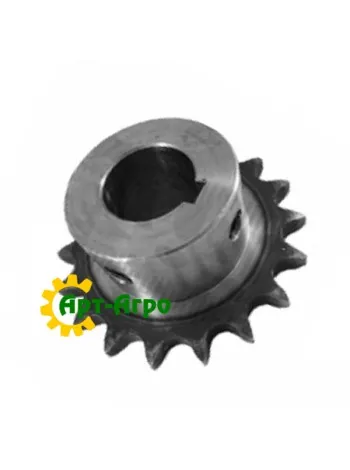

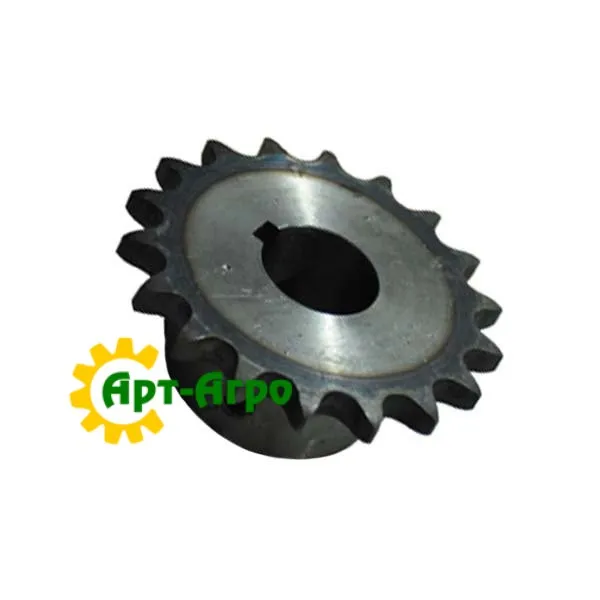

It is a steel or cast iron product of complex spatial shape in the form of an 18-tooth sprocket with a central hole and fasteners.
Before choosing the right sprocket, we recommend paying attention to the following main parameters: roller width, chain pitch, outer diameter, number of teeth, width, keyway parameters and shaft diameter.
You can buy AH121047-WN for John Deere equipment by contacting our managers online through the feedback form, by e-mail, by phone or through the basket of the Art Agro store.

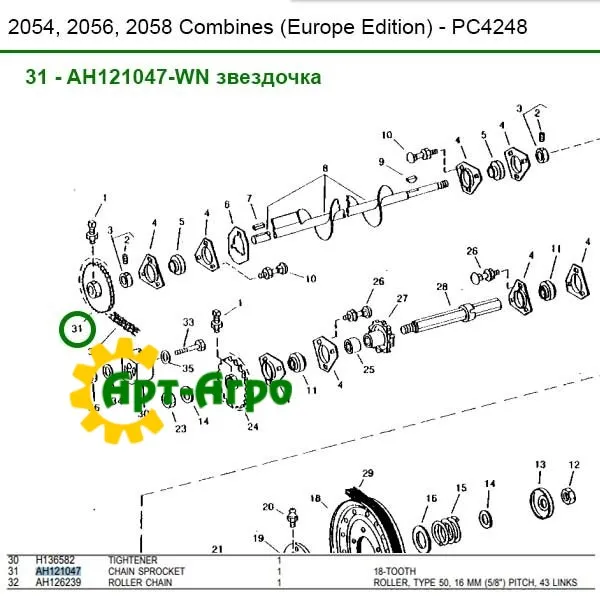

One of the options for using the part - look at the diagram.
| Properties | |
| Size | 0.165 x 0.165 x 0.039 m, hole diameter 1.184" (3.007 cm) |
| Weight | 616.9 g |
| Additional | 18 teeth |
